Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
Max. extraction rate: 365 m3/h
Noise max. Normal Level: Noise, max. speed in normal us: 66 dB dB*
Features
Push button control
3 power levels
2 x 1.5W LED light
Colour Temperature: 3500 K

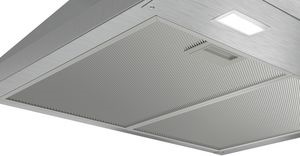

2 removable metal grease filter cassettes
Installation: wall
Design

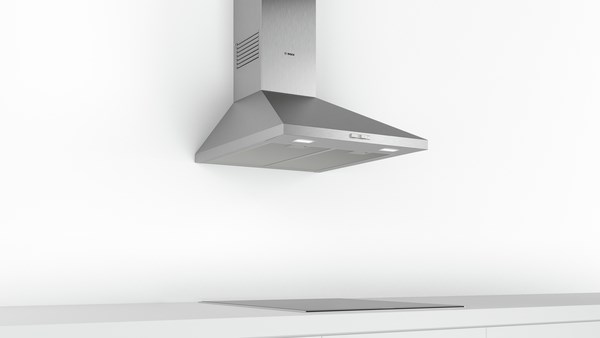

Chimney extractor hood
Mechanical
Performance/technical information
Suitable for ducted or recirculating operation
For recirculated extraction recirculating kit (accessory) needed
Maximum extraction rate exhaust air 365 m³/h according to EN 61591
Extraction rate in recirculation mode:
Max. normal use:211 m³/h
Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 66 dB(A) re 1 pW
Noise level in recirculation mode:
Max. normal use:67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
Power rating: 100 W
Light Intensity: 104 lux
Electrical cable length 1.3 m
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Dimensions exhaust air (HxWxD): 799-975 x 600 x 500 mm
Dimensions recirculating (HxWxD): 799-975 x 600 x 500 mm
Blower Efficiency Class: E*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: C*
Average Energy Consumption: 53.1 kWh/year*
Optional accessories
Recirculating kit DHZ1224
Product Specifications
EAN
4242005031467
Appliance Frequency (Hz)
50; 60
Major Department Name
Hoods
Department Name
Wall-Mounted Hoods
Features | Benefits
Pyramid hood: perfect performance matching your kitchen.
Country of Origin - Code
GERMANY
Typology
Hood
Brand Name
Bosch
Width
600
Depth
500
Consumer Item - Net Weight
7.6
Consumer Item - Gross Weight
11.3
Type of Light
LED
Appliance Current (A)
10
Approval Certificates
CE, E17D UKCA marking, VDE
Plug Type
GB plug
Number of Motors
1
Number of Lights
2
Cord Length
130
Operating Mode
Convertible
Chimney Material
Stainless steel
Motor Location
Integrated motor in hood body
Fluid Dynamic Efficiency
8.1
Fluid Dynamic Efficiency Class
E
Energy Efficiency Class
D
Noise Level
66
Division Name
Cooking
Lighting Efficiency Class
A
Construction Type
Built-In
Installation Type
Built-In
Appliance Voltage (V)
220-240
Grease Filter Type
Kassette
Max Output Air Extraction
365
Max Air Flow
365
Min Air Flow
199
Air Flow Boost
0.0
Sound Power Max Speed
66
Sound Power Min Speed
50
Grease Filtering Efficiency
81.2
Grease Filter Material
Washable aluminium
Max Output Recirculating Air
211
No Return Air Flow Flap
No
Odor Filter
No
Height without Chimney
246
Diameter of Air Outlet
0
Consumer Item - Height
246
Type of Control Settings
push-button
Lighting Efficiency
37.1
Grease Filtering Efficiency Class
C
Colour Name
Stainless Steel
Consumer Item - Width
600
Consumer Item - Depth
500
