Bosch PCR9A5B90, Gas hob
Product code: PCR9A5B90
£599.00 £799.00

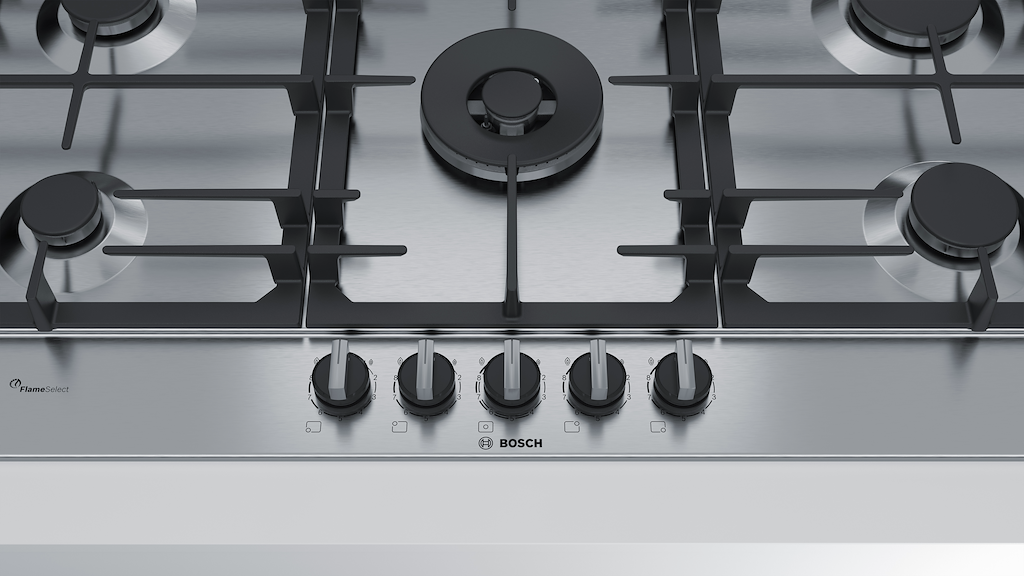

Serie | 6, Gas hob, 90 cm, Stainless steel, PCR9A5B90
- FlameSelect: adjust the gas flame precisely using nine defined levels.
- Dual flame power burner with two heat options, quickly boil water or maintain a precise simmer.

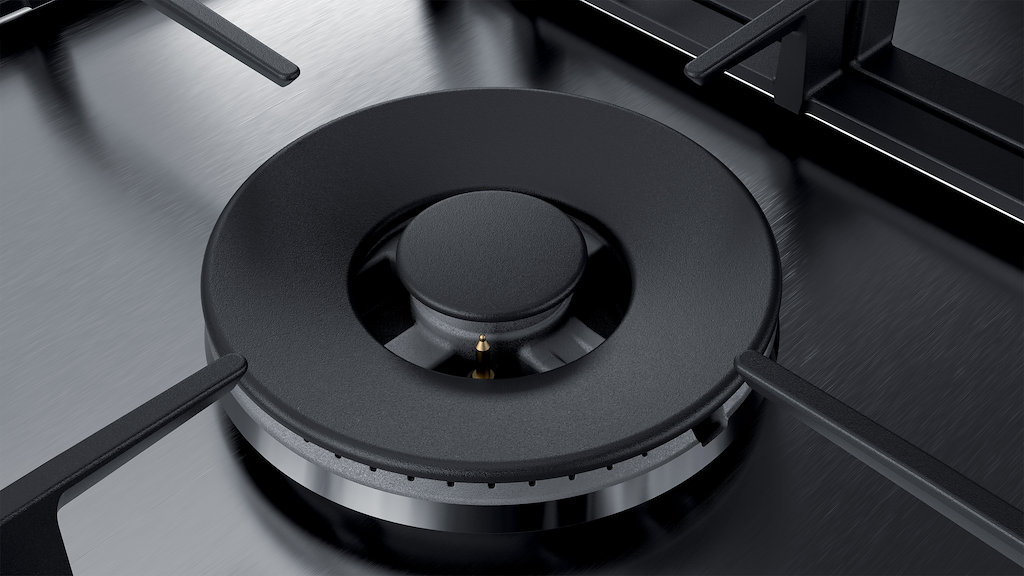

- Dual wok burner: dual flame system for very powerful cooking at up to 5 kW.
- Continuous cast-iron pan support: for high firmness and stability of cookware.
- Biomethane-ready: your gas hob can also be powered with renewable biomethane gas.
Available on back-order
- Product Description
Design
- Stainless steel surface
- Cast iron pan supports
Usage convenience
- FlameSelect: precisely control and adjust the flame in nine defined levels.
- Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
Burners and power
- 5 gas burners:
- Including 1 dual control wok burner: use an extra wide power range, separately controlling two flame rings.
- Left front: economy burner up to 1 kW (depending on gas type)
- Left rear: Standard burner up to 1.75 KW (depending on gas type)
- Center front: wok burner up to 5 KW (depending on gas type)
- Right rear: high-speed burner up to 3 KW (depending on gas type)
- Right front: standard burner up to 1.75 KW (depending on gas type)
Safety
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
- Usable for: Nat gas L/LL G25/20mbar(DE)
- NG H/E 20mbar, E+ 20/25mbar
- Natural gas H 25 mbar (HU)
- Natural gas L 25 mbar (NL)
- Liquid gas G30,31 28-30/37mbar
- Liquid gas G30 37 mbar (PL)
- Liquid gas 50 mbar
- Pre-set for natural gas
- Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
- Dimensions of the product (HxWxD mm): 53 x 915 x 520
- Required niche size for installation (HxWxD mm) : 45 x 850 x (490 – 502)
- Min. worktop thickness: 30 mm
- Power cord: 1.5 m
- Connected load: 12.5 KW
All gas appliances must be installed by a Gas Safe registered engineer in accordance with current UK regulations; improper installation may be unsafe and could invalidate your warranty.
- Product SpecificationsEAN
4242002802787
Heating Element Location 6center right
Main On | Off SwitchNo
Ignition SystemYes
Number of Gas Burners5
Number of Burners5
Heating Element Location 9front centre/cent
Heating Element Location 8front middle / central
Heating Element Location 7front right
Heating Element Location 4middle back
Type of Pan SupportElongated cast iron pan support
Compartment TimerNo
Cooker | Over Automatic ProgramsNo
Heating Element Location 2center left
Heating Element Locationfront left
Heating Element Type 9Gas
Heating Element Type 7Gas
Heating Element Type 5Gas
Heating Element Type 3Gas
Type of Safety for GasElectromagnetic for each burner
Heating Element Location 3back left
Number of Induction Plates0
Number of Halogen Plates0
Number of Radiant Plates0
Number of Electric Plates0
Number of Electric Cooking Zones0
Consumer Item - Depth520
Consumer Item - Height45
Consumer Item - Width915
Residual Heat Indicator TypeWithout
Gas ConnectionNo
Automatic ProgramsNo
Heating Element TypeGas
Heating Element Location 5back right
Type of Control Settingssword knobs
Consumer Item - Gross Weight17.7
Consumer Item - Net Weight15.539
Depth520
Height45
Width915
Brand NameBosch
Type of LidWithout
Min Niche Height490
Country of Origin - CodeSPAIN
Features | BenefitsThe stainless-steel gas hob with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels.
Colour NameStainless Steel
Department NameGas Hobs
Major Department NameHobs
Type of Control | AppliancesMechanical
Construction TypeBuilt-In
Division NameCooking
Cord Length150
Product Familygas hob w integrated controls
Fuel TypeNat gas H/E/(L) 20 (25) mbar
Color of FrameStainless steel
Hob TypeGas
Niche Depth45
Max Niche Width852
Min Niche Width850
Max Niche Height502
Alternative Fuel TypeLiquid gas G30,31 28-30/37mbar
Power On IndicatorNo
Installation TypeBuilt-In
Plug Typeno plug
Approval CertificatesCE, Morocco
Appliance Frequency (Hz)50; 60
Appliance Voltage (V)220-240
Appliance Current (A)3
Energy InputGas
Safety FeaturesFlame failure safety device
Number of Electric Warming Zones0
