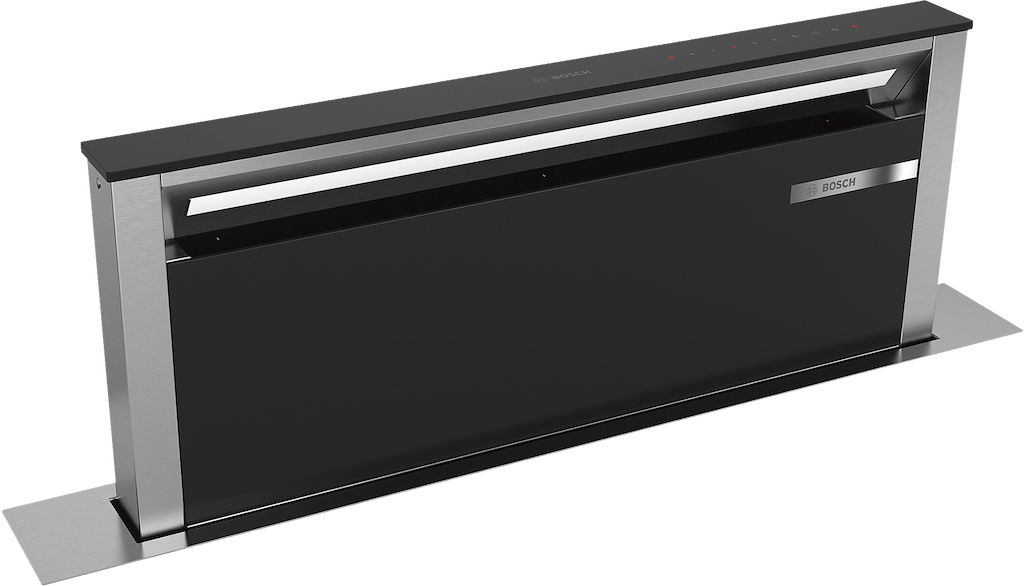

Bosch DDD97BM60B, Downdraft hood
Product code: DDD97BM60B
£1,669.00 £2,003.00
Serie | 8, Downdraft hood, 90 cm, clear glass black printed, DDD97BM60B
- Silent: maximum extractor performance with minimal noise.
- LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
- Intensive speed setting: removes strong kitchen odours quickly and effectively.
- An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time.
- Intensive speed setting with reset: automatically resets the hood to normal speed setting
7-10 Days, please get in touch to confirm
Out of stock
-
Product Description
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 530 m³/h
- Intensive 750 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*
Features

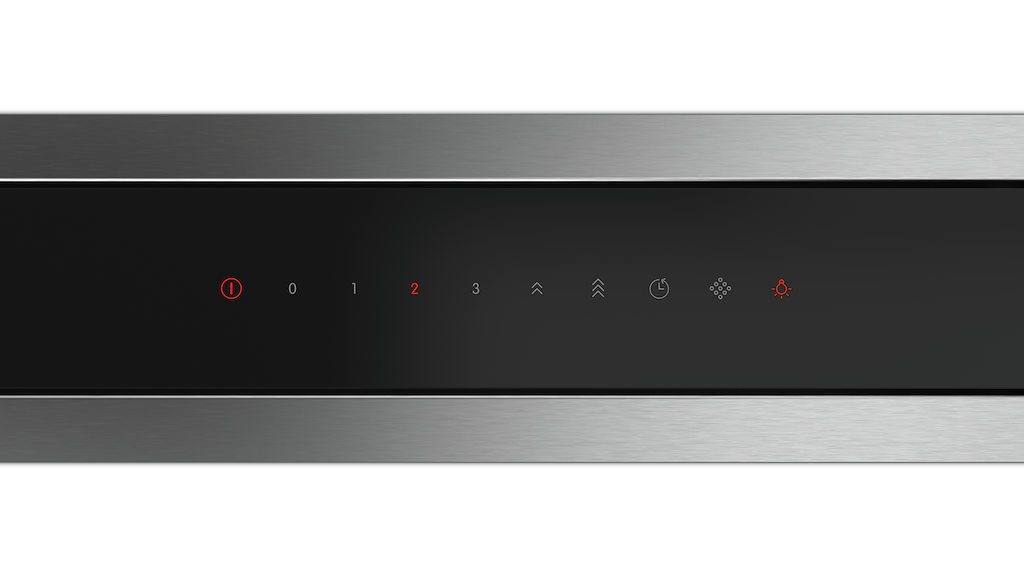

- TouchControl for extractor speeds and light
- 3 power levels and 2 intensive settings
- 1 x 7W LED-module
- Automatic after running (Automatic after running (10 min))

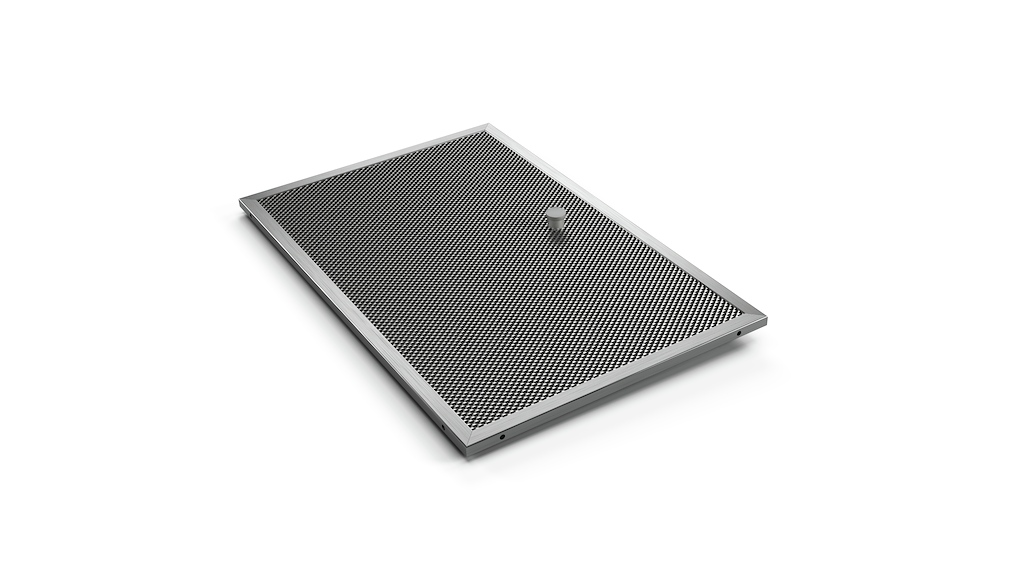

- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
Design
- Worktop ventilation
- Installation: integrated
- Suitable for regular or flush installation in worktops.
- Extension height 300 mm
- Rim ventilation
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit (accessory) needed
- In recirculation mode no combination with gas hobs allowed.
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 62 dB(A) re 1 pW
- Intensive: 67 dB(A) re 1 pW
- Extraction rate in recirculation mode:
- Max. normal use: 452 m³/h
- Intensive: 500 m³/h
- Noise levels in recirculation mode:
- Max. normal use: 72 dB(A) re 1 pW
- Intensive: 75 dB(A) re 1 pW
- Power rating: 317 W
- Light Intensity: 203 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.5 m
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 54.2 kWh/year*
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
- Dimensions exhaust air (HxWxD): 738-1038 x 918 x 268 mm
- Dimensions recirculating (HxWxD): 738-1038 x 918 x 268 mm
Optional accessories
- Recirculating kit DSZ9ID0M0
-
Product SpecificationsEAN
4242005074198
Number of Lights1
Major Department NameHoods
Department NameDowndraft Hoods
Features | BenefitsThe DownDraft hood provides an open view into the kitchen and clear views from the hob thanks to a high extraction rate. When not in use it simply dissapears into the worktop.
Country of Origin - CodeITALY
Cord Length150
Energy Efficiency ClassA
Max Niche Width844
Brand NameBosch
Width918
Depth268
Consumer Item - Net Weight35.3
Consumer Item - Gross Weight51.1
Type of Control | AppliancesElectronic
Min Niche Width844
Operating ModeConvertible
Type of Control Settingsglasstouch, touch control
Construction TypeBuilt-In
Installation TypeBuilt-In
Appliance Current (A)10
Appliance Voltage (V)220-240
Appliance Frequency (Hz)50
Approval CertificatesCE
Max Output Recirculating Air452
Number of Motors1
Niche Depth104
Division NameCooking
Boost Position Output Recirculating500
Noise Level62
TypologyDowndraft
Plug TypeGB plug
Sound Power Max Speed62
Grease Filtering Efficiency66
Grease Filtering Efficiency ClassD
Max Air Flow530
Min Air Flow260
Noise Level Boost Position67
Max Output Air Extraction530
Max Extraction m3/h750
Motor LocationIntegrated motor in hood body
Fluid Dynamic Efficiency31
Grease Filter MaterialWashable aluminium
Odor FilterNo
Lighting Efficiency ClassA
Lighting Efficiency29
Sound Power Min Speed43
Sound Power Boost67
Fluid Dynamic Efficiency ClassA
Diameter of Air Outlet150
No Return Air Flow FlapNo
Consumer Item - Width918
Consumer Item - Depth268
Colour NameBlack
Hood TypeDowndraft, Island
-
